Product Details:
|
| Chipset: | RK3288 CPU | LCD Display: | EDP Screen Interface / LVDS Screen Interface(optional) |
|---|---|---|---|
| Double Screen Display: | Support Double Screen Display(optional) | 4G LTE: | Support 4G(optional) |
| Operating System: | Android 6.0 (Linux OS Optional) | Gravity Induction: | Support 0°90°180°270°manual Automatic Rotation |
| WiFi: | 802.11 B/g/n_2.4G (5G Optional) | Network: | 10M/100M/1000M Ethernet; |
| RAM: | 2GB/4GB (optional) | ROM: | 8GB/16GB/32GB(optional) |
| UART: | Support | ||
| High Light: | mini hd media box,digital signage player box |
||
Smart HD Meida Player Box digital signage advertising Player display 2gb 8gb with Remote Managing Software
RK3288 Solution:
1, High performance. The RK3288 chip uses the quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
2, High stability. RK3288 Android integrated board, add their own unique technology in the hardware & software to ensure the stability of the product. To make sure the device 7*24 hours unattended.
3, High integration. RK3288 Android integrated board integrates Ethernet, WIFI, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
4, Multi interfaces. 6*USB ports, 3*UART ports, can connect more peripheral devices.
Products Description:
Monitor and other displays into eye catching digital signage for your business or organization. If you want a great Digital Signage Media Player, then SUNCHIP ADVERTISING MEDIA PLAYER BOX is the best choice you can make.
Digital signage doesn't have to be complicated or expensive. To get your message across in an attractive way. Schedule, manage and upload content to your screens at the click of a button, all from your browser. Easily display your latest offers, share company news, products and service in video/image/website/scrolling text, and much more.
SPECIFICATIONS
| Model No.: AD-0140(AD-B02) | RK3288 Quad-core chipset with Android 6.0 OS | |||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional) | |||||
| Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 6.0(Linux optional) | |||||
| Network | WiFi | 802.11b/g/n(2.4G/5G optional) | ||||
| Mobile network | Support full Netcom 4G (optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100/1000M Ethernet | |||||
| Language | Multi-Language support | |||||
| Interface | ||||||
| Interface | USB interface | Support USB host*2 | ||||
| Micro USB | USB_Debug interface*1 | |||||
| DC | DC power 12V input | |||||
| SD card | Maximum support 64GB | |||||
| Screen interface | EDP screen interface / LVDS screen interface(optional) | |||||
| Speaker output | 8Ω*5W * 2(optional) | |||||
| UART | UART2*1(optional) | |||||
| infrared remote control | Support infrared remote control | |||||
| USB port expantion | USB port expandert*1(optional) | |||||
| RJ45 | 10/100/1000M Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | Power adapter 12V/2A | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 195*100*20 | |||||
| Others Parameters | ||||||
| Double screen display | Support Double screen display(optional) | |||||
| Gravity induction | Support 0°90°180°270°manual automatic rotation | |||||
PRODUCT SCENARIOS
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
Waiting for your inquiry~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.

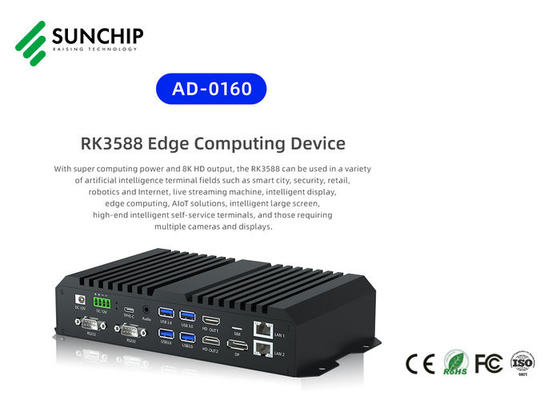

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
