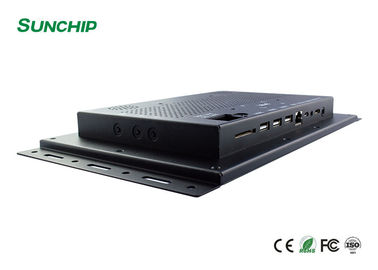

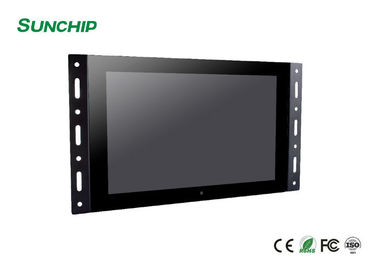

10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage

10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage
10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage
10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage 10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage 10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage

Large Image :  10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW
Certification: ISO9001, CE, ROHS, FCC
Model Number: AD-P1040-RK3288
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: about 30 days
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage

Description
CPU&GPU: RK3288 Quad-core LCD Screen: 10.1''
Resolution: 1280*800 Operating System: Android 6.0 (Linux OS Optional)
RAM: 2GB/4GB(optional) ROM: 8GB/16GB/32GB(optional)
Network: WIFI / Ethernet /4G LTE (optional) OTA: Support OTA Upgrade
High Light:

open frame lcd screen

,

open frame lcd monitor



10.1 inch lcd open frame digital signage monitor thin bezel metal digital open frame display  from SUNCHIP





It can display files preset in flash drive and can also display programs online.





Key features

10.1 inch Wall Frameless LCD Panel Open Frame LCD Monitor



  1. Good design, slim, elegant and fashion.
  2. Aluminum bezel, wiredrawing treatment.
  3. Cover-lens for protection
  4. Standard VESA holes and console holes for wall mounting.
  5. Support SD card, USB memory.
  6. Network version support internet and 4G net, can be group managed via net.
  7. Support all video, audio and picture formats.
  8. Optional touchscreen.



Overview:



RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution, support Android5.1 system. Supports the decoding of the popular audio & video formats and images. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display. With HD interface, support 4K video playing. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.









10.1 Inch Open Frame Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage





SPECIFICATIONS



Model No.:

AD-P1040-RK3288

RK3288 Quad-Core Android 6.0 (Linux OS optional)

-Open Frame Series





Hardware Spec
System CPU&GPU RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764
RAM 2GB/4GB(optional)
Internal Memory 8GB/16GB/32GB(optional)
Operating system Android 6.0 (Linux OS optional)
Touch screen Optional
Display Panel 10.1''
Resolution 1280*800
Contrast ratio 800:1
Screen brightness 300 cd/m2
Aspect Ratio 16:10
Network WiFi 802.11b/g/n (2.4G/5G Optional)
Mobile Network Support 4G LTE (Optional)
Bluetooth Bluetooth 4.0
Ethernet 10M/100/1000M Ethernet





Interface
Interface USB interface Support USB host*2
Type-C USB Type-C USB_OTG*1
(power jack) DC power 12V input
TF card Maximum support 128GB
RJ45 Ethernet port
Headset 3.5mm stereo headphone output
Speaker output Support 8 ohm 2W speaker*2
Power connector 6PIN pitch 2.0 built-in power board interface *1 (optional)
GPIO expansion port 4PIN spacing 2.0 GPIO external expansion port *1 (optional)
RS232 interface 4PIN spacing 2.0 RS232 or UART external expansion port *1 (optional)
UART interface 4PIN spacing 2.0 UART external expansion port *1 (optional)
MIC interface 2PIN spacing 2.0 MIC external expansion port *1 (optional)
Infrared remote control Support built-in infrared remote control (optional)
Infrared remote control and LED light support 6PIN spacing 2.0 external expansion port (optional)
USB expansion port 4PIN spacing 2.0 supports USB host external expansion port *3 (optional)
Buttons/Keys Buttons/Keys Vol+, Vol-, Power





Media Parameter
Media Playback Video format H.264,MPEG2, VP6,VP8,MVC etc 2160P@24FPS; Youtube online Videos up to 1080P; HTML5, Flash10.1;
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook   PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Image Format JPG,BMP,PNG





System Management
System Management APK install APK installer
Root permission Original Android system, open root permissions, product customization development
Remote control Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrade





Accessories
Accessories Adapter 12V/2A
User's Guide Standard





Size(unit:mm)
Product size(L*W*H) 270*152.8*27.6
colour box size(L*W*H)
Carton size(PCS/CTN)(L*W*H)





Others Parameters
Dual Screens with different Contents Support Dual Screens with different Contents(Optional)
VESA Support 75*75mm VESA
Gravity sensor Support 0°, 90°, 180°, 270° Manual and automatic rotation







PRODUCT SCENARIOS



10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage 0



10.1 Inch Open Frame LCD Display OEM/ODM LCD Ad Player Open Frame Kiosk Advertising device Digital Signage 1





PACKAGING DETAILS



EPE foam x1

carton x1

wooden case x1
