Product Details:
|
| Panel Size: | 18.5 Inch | Operating System: | Android/Linux |
|---|---|---|---|
| Application: | Indoor | Resolution: | 1366*768, |
| Panel: | IPS | Brightness: | 250cd/㎡ |
| Speaker: | 3W * 8Ω * 2 | After-sales Service: | Online Support, Video Technical Support |
| Usage: | Advertising Display, Interactive Menu |

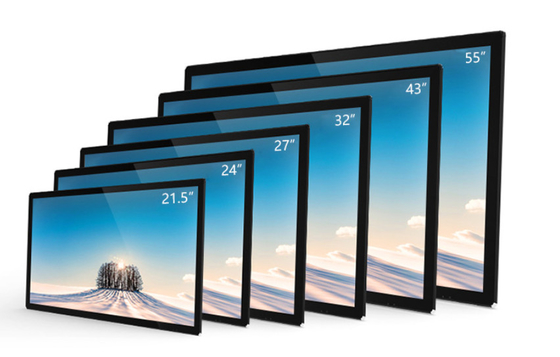

18.5'' 21.5'' 23.8'' 27'' Android Touch screen LCD Display Digital Signage Network Advertising Kiosk support WIFI 4G LAN
Model No: AD-18.5ʺ-3288
Traditional signs like posters and banners have been around for a long time, they were the best option for business owners and advertisers to advertise & market their products and service. The static signs are simple and their initial cost are low, however it can only show one message/printing at a time. And it takes time and effort to design, print and install a new one, and the cost of updating is getting higher and higher and the biggest problem is it's a static "silent salesman", it has less eye-catching, it can't affect your customer's mood too much. Now, after years of developing, the situation has changed, DigitalFrame0 has successfully integrated the digital advertising displays with an embedded media signage player and CMS , which is able to easily use slide shows and carousels to provide a more dynamic ways and deliver right meaningful content to interact with your target audience in right location via USB or network. The integration allow our LED signage displays to be able to attract more attention from visitors, then create a more comfortable viewing experience and finally increase more business sales and brand awareness.
Traditional paper menu boards are neither environmentally friendly nor convenient. It needs to be replaced when broken, replaced when new dishes are added, and replaced when prices are modified ...... If you want beautiful, convenient, and clear, the SunChip advertising machine can meet all your needs. Customized installation layout is provided to make full use of the actual space. Advertising information can be converted at any time, and the content is updated in real time. Support picture and video playback at the same time. One machine releases multiple messages, which is more cost effective.
Characteristic of the Board
Different Industries, Diverse Applications:
can provide custom solutions that perfectly cater to the needs of your industry and applications. Industries that often use digital signage include but are not limited to the following.
Parameter of the Machine
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8GHz |
| RAM | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional |
| Display interface | MIPI Screen interface, Max resolution 1920*1080 |
| EDP screen interface | |
| Touch Panel |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
| The internet | With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | Built-in (optional external) real-time clock power supply battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.) | |
| SD card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 Output | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
WELCOME TO INQUIRE US FOR ANY PRODUCTS!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
