Product Details:
|
| CPU: | RK3588 Octa-core CPU 8nm Process 4 X Cortex-A76 And 4 X Cortex-A55 | GPU: | ARM Mali G610 MP4 GPU |
|---|---|---|---|
| NPU: | 6Tops，int4/int8/int16/FP16 | MCU: | For Low Power Control |
| Operating System: | Android 12 | Dual-Ethernet: | Support 10/100/1000M Ethernet*2 |
| Mobile Network: | Supports Wireless 4G Network | M.2 Built-in SSD Interface: | M.2 Built-in SSD Expansion Interface*1 |
| Max Resolution: | 8K | Shell Material: | Aluminum Alloy + Metal Profile |
| High Light: | 8K Android Edge Computing Device,Industrial Control Player Box RK3588,12 NPU Industrial Control Player Box |
||

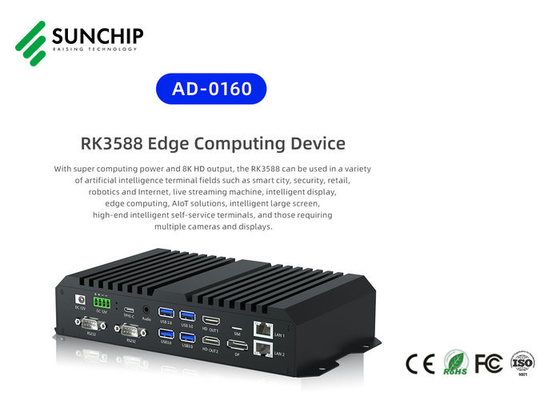

RK3588 8K Edge Computing Device Android 12 NPU 6 Tops industrial control player box
Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution. Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.

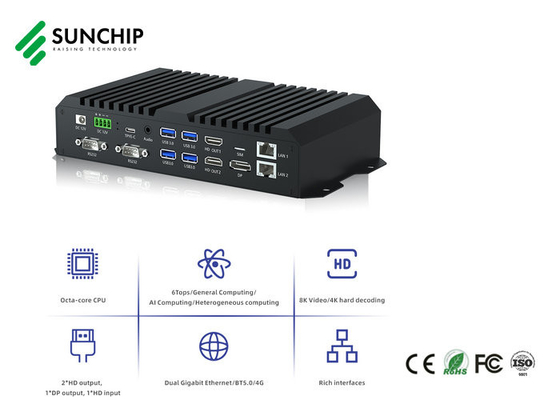

Features for box
Support multiplexed display (single-port maximum support 7680*4320 60HZ)
Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
Multiple USB interfaces, RS3232, RS485 serial ports.
Strong resistance to electromagnetic interference and electromagnetic compatibility.

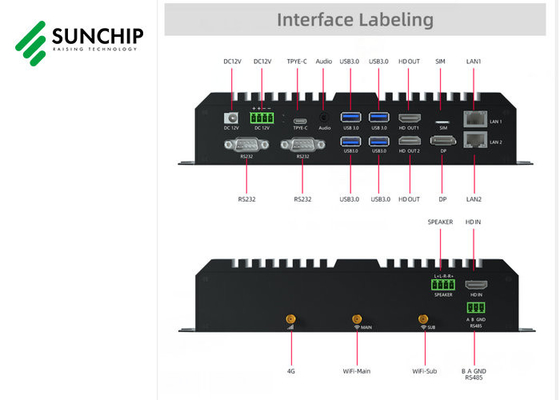

| Motherboard Interface | TYPE_C | Standard Type_c*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Wired network port | RJ45 network port*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 | |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 4K60HZ output*1 | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 |
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android board for industrial digital signage,
(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
2, Android digital signage media player box, (RK3328, RK3288, RK3399)
3, Stretched lcd display signage,
4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
6, Embedded touch desk, (Such as, 32-inch, ...)
7, Face recognition temperature detection and attendance equipment, (8-inch)
8, CMS system. (Publish contents/programs by remotely.)
