Product Details:
|
| CPU: | RK3288-CG Quad-Core ARM Cortex-A17@1.8GHz | GPU: | Mali-T764@MP4 |
|---|---|---|---|
| Construction: | Aspherical Lens | Material: | PMMA |
| Weight: | 8.3g | Piece Of Lens: | 1P |
| （FOV）: | Horizontal 116° X Vertical 116° | Battery: | Polymer Battery 4000mAh |
| Pupil Distance: | 62mm | Eye Relief: | 20mm |
| Eye Box: | 5mm | Total Track Length: | 42.96 |
| High Light: | PMMA 3D Virtual Reality Glasses,Aspherical Lens 3D Virtual Reality Glasses |
||

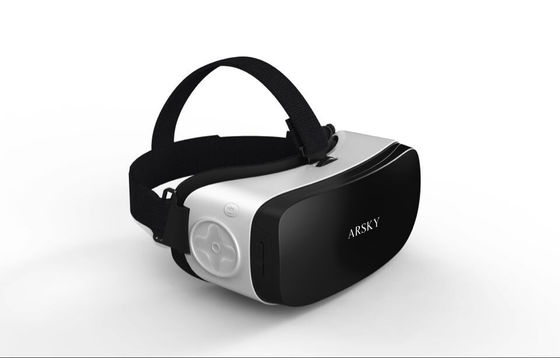

ARSKY CX-V5 Virtual Reality Polymer battery 3D Headset Glasses Bluetooth WiFi 2K Screen
Model No: CX-V5
1. Quad-core processor, ultra-fast computing speed.
2. Deeply customized AR system, new convenient UI interface, more aspects of control.
3. Excellent ergonomic design, easy to wear.
4. FHD AMOLED screen with low afterglow, high contrast ratio, high refresh rate and ultra-fast response speed.
5. Large field of view, 84 degrees.
6. Unique optical lens, precision coating technology, ultra-low chromatic aberration.
7. Integration of multiple sensors.
8. Built-in rich AR scene content resources.
| Hardware specification | ||||
| CHIPSET | CPU | RK3288-CG Quad-Core ARM Cortex-A17 1.8GHz | ||
| GPU | Mali-T764 MP4 | |||
| WiFi | 802.11 b/g/n, 2.4GHz wifi AP6212 | AP6330 5GHz/2.4GHz optional | ||
| Buletooth | BT4.0 | |||
| RAM&ROM | RAM | DDR3 2GB | 256*16bit *4pcs | |
| ROM | eMMC 16GB | |||
| T-Flash | Support TF card | |||
| Display | Display | TFT | ||
| Number | 1 | |||
| Screen size) | 5.5 inch | |||
| Resolution | SHARP 2560*1440 | |||
| FPS | 60Hz | |||
| (Response Time) | <20ms | |||
| Glasses/Optical lens | Construction | aspherical lens | ||
| Material | PMMA | |||
| Weight | 8.3g | |||
| Piece of Lens | 1P | |||
| Total Track Length | 42.96 | |||
| (FOV) | Horizontal 116° x Vertical 116° | |||
| Pupil Distance | 62mm | |||
| Eye Relief | 20mm | |||
| Eye Box | 5mm | |||
| Sensor | Accelerate Sensor | MPU6500 | ||
| Compass Sensor | AK8963C | |||
| Gyro | MPU6500 | |||
| Battery | Battery Type | Polymer battery 4000mAh | ||
| Buttons | CTP | Touch panel at right side | direction keys / confirm key | |
| Hard Key | Power on/off,VOL+/-,N | LEFT::Power / N RIGHT:VO+/VO-/Back |
||
| Audio | MIC | Support | ||
| Headset | 3.5mm earphone | |||
| Charging | Charge Port | Micro USB | ||
| Charge Current) | 2A | |||
| I/O | data transfer | Micro USB | ||
| USB OTG | Support | |||
| USB Type-A | Support | USB host support 2.4GHz remote | ||
| LED light | Power on/ Charging | Support | ||
| Firmware specification | ||||
| OS | Nibiru ROM base on android 5.1 | |||
| Apps | Include : Local video player,panoramic LO,setting,Browser,Play store,filemanager,picture ect. | |||
| Update | support local upgrad by tool | |||
| OTA upgrade | ||||
| Multimedia | Local video player,support 3D and Panoramic video | |||
| Pictures,support common local images and panoramic images | ||||
| Video encoding Support MPEG encoding format,maximum to 1080p resolution, Support DIVX encoding, the maximum to 1080p resolution, Supports h. 264 coding format, maximum to 4k resolution, Supports h. 265 coding format, maximum to 4k resolution, Support VP8 encoding,maximum to 1080 p resolution, Support VP6 coding format, maximum to the 1080p resolution. |
||||
| Support 720P/1080P local broadcast and panoramic video and streaming media； | ||||
| Package size: | ||||
| Dimension | 207.2*118.7*92.5mm | |||
| Net weight | 505g | |||
| Gift Box Size | 215*162*115mm | |||
| Carton box weight | 345g | |||
| Carton Box Size | 348*353*228mm 6PCS/CTN | |||
| Accessories: | ||||
| 1,User manual x 1pcs 2,5V/2A USB adapter x 1pcs 3,earphone x 1pcs 4,micro USB cable x 1pcs 5,Giftbox packing x 1pcs | ||||
