LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage

LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage
LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage
LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage

Large Image :  LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage

Product Details:
Place of Origin: Guangdong, China
Brand Name: SUNCHIP
Certification: CE, FCC,ROHS
Model Number: AD-B03-RK3399
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 per month

LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage

Description
Brand Name: Sunchip CPU: RK3399
Product Name: Android Industrial Control ARM Board Operating System: Android 7.1 /Android 9.0/ Android 10
Resolution: 1920*1080 Type-C Interface: Support
OSD Language: Multi-language Support Touch Screen: IPS
RAM ROM: 4/16GB; 4/32GB Place Of Origin: Guangdong, China
High Light:

LVDS EDP LCD mother Board

,

Android RK3399 LCD mother Board

,

CE RK3288 lcd monitor controller board

Android RK3399 RK3288 LVDS EDP LCD mother Board for LCD Digital signage



Products Description

Overview:

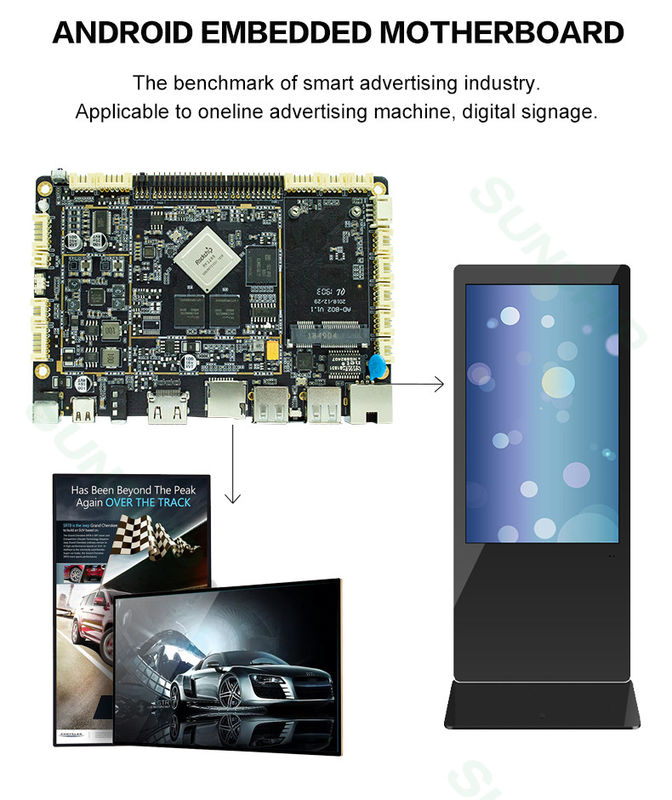

The intelligent industrial integrated machine board adopts the Rockchip RK3399 six-core chip solution and supports Google Android 7.1 /Android 9.0/Android 10.0 and above. Powerful computing ability. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Applicable to intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.



Application Field

■ Commercial advertising display machine

■ POS machine

■ Digital photo frame advertising machine

■ Touch all-in-one machine

■ Self-service vending machine





Intelligent industrial POS motherboard, using eight-core chip Qualcomm MSM8953 solution,2.0GHz. Intelligent power management circuit supports commonly used external devices, rich interfaces and stable performance.



The board supports dual EDP and LVDS and MIPI and HDMI display output interfaces, supports 3G/4G data communication, WIFI/Bluetooth (supports 2.4G/5GWIFI) in one, supports currently popular video and picture format decoding, supports 4K, H .265 hard decoding.



Support single channel, dual channel,EDP/LVDS display, very suitable for commercial display advertising machine, POS advertising machine, touch all-in-one machine,etc.



Product Parameters

CPU
Rockchip RK3399 dual-core Cortex-A72 + quad-core Cortex-A53 CPU
GPU
ARM Mali-T860MP4 GPU
RAM
DDR3 4G optional
Built-in storage capacity
EMMC 16G / 32G / 64G optional (label 16GB)
Display interface
LVDS interface (single channel, 6-bit dual channel, 8-bit dual channel). Support maximum resolution 1920x1080, support 7 "-84"
display
EDP screen interface, support resolution 1920x1080
touch screen
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared
touch, multi-point sound wave touch, multi-point optical touch
The internet
With RJ45 interface, support 10/100 Ethernet
With Wifi & BT module, support Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0
Image rotation
Support 0 degree, 90 degree, 180 degree, 270 degree manual / automatic rotation, support gravity sensor function
Real Time Clock
Built-in real-time clock power supply battery
Interface equipment
Support MIPI interface camera, up to 500W pixels
Support USB camera
4 USB HOST, 1 USB OTG (support POE power supply)
3 groups of serial ports. Support external connection serial device module (3G module, NFC module, printer, card reader, etc.)
3 IO detection ports
SD card, maximum support 64GB
Class D amplifier: 1.5W * 28 ohms, supports microphone
HD 2.0 output
Audio
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
video
Support 2160P @ 24FPS decoding of H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 1080P,
HTML5 video playback, Flash 10.1 playback
Support various picture formats such as JPG, BMP, PNG, etc. and support rotation / slide show / picture zoom function
Power Adapter
Input: AC100-240V.50-60HZ, output: DC12V 3A







LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage 0



LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage 1

LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage 2

LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage 3LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage 4



Service:

1. PCBA design

2. Housing design

3. Software and hardware customization

4. Logo print

5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function

6. Good quality products

7. full after-sales service with technology support

8.100% QC check before shipping



Packing & Delivery
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.



LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage 5
LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage 6
LVDS EDP LCD Mother Board Android RK3399 RK3288 For LCD Digital Signage 7
