Product Details:
|
| Platform: | Rockchip RK3288 | RAM ROM: | 2GB 16GB |
|---|---|---|---|
| Display: | HD, LVDS EDP | WIFI: | Support 2.4G Or 2.4G+5G WIFI Band |
| Ethernet: | Support 1000M | 4G LTE: | Supported Optional |
| USB: | Support 2 USB Ports | G-Sensor: | Yes |
| High Light: | 1000M Ethernet HD Media Player Box,4k HD Media Player Box,Rockchip RK3288 HD Media Player Box |
||
1000M Ethernet HD Media Player Box 4k Advertising Media Player
Quad Core Wireless 4K STB Network Media Box For Digital Signage
Android digital signage advertising media player box with CMS
Platform RK3288-Features:
1, High performance. The RK3288 chip uses the quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
2, High stability. RK3288 Android integrated board, add their own unique technology in the hardware & software to ensure the stability of the product. To make sure the device 7*24 hours unattended.
3, High integration. RK3288 Android integrated board integrates Ethernet, WIFI, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
4, Multi interfaces. 6*USB ports, 3*UART ports, can connect more peripheral devices.
Model: RK3288 AD-B02 BOX
Specifications:
| CPU | Rockchip RK3288 Cortex-A17 Quad core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| ROM | EMMC 8GB/16G/32G/64G optional default: 8GB |
| Display interface | LVDS (single way,6 bit dual-way, 8 bit dual-way), Resolution max 1920x1080, support 7"-84" display |
| EDP interface, Resolution max 4K | |
| Screen voltage | Support 3.3V/5V/12V(optional) |
| Touch Screen |
I2C interface (support resistive touch, capacitive touch) Support USB IR multi touch, sonic multi touch, optical multi touch |
| Network | RJ45 interface, ethernet 10/100/1000M |
| Wi-Fi 802.11b/g/n, BT4.0 | |
| Support 4G LTE | |
| Image rotation | Support 0°, 90°, 180°, 270°, manual control or automatic, gravity (optional) |
| RTC | Built in internal battery for Real time clock |
| interfaces | Support MIPI camera, max 5MP |
| Support USB camera, max 2MP | |
| HD out | |
| 6*USB HOST (Support USB camera @500w, USB printer, USB stick, mouse, keyboard, standard USB peripherals) | |
| Serial ports x 3(1*UART+2*UART or RS232), support external devices (NFC module, printer, card reader etc.) | |
| 6*IO | |
| TF card slot | |
| D classamplifier,5W*2 8R | |
| support microphone | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback |
| image | Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify |
| Power supply | input:AC100-240V.50-60HZ, output: DC12V, 3A |
| OS | Android 5.1 or above, from 6.0-9.0 can be supported. |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | Multi language |
| Recording | Support MP3, WMA, 3gpp, Amr, etc., the system comes with an Amr format |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Note | |
| Recording | |
| Document | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input methods | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Gmail | |
| OS management | APK Installer |
| Original eco-Android system, open root privileges, can be customized product development | |
| Real-time remote monitoring, system crash recovery automatically, 7 * 24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |

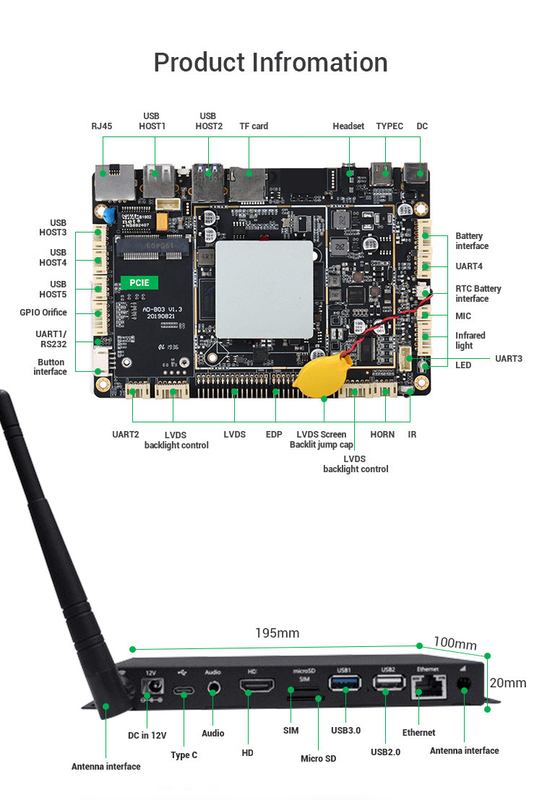

Android Board inside of the Player Box:

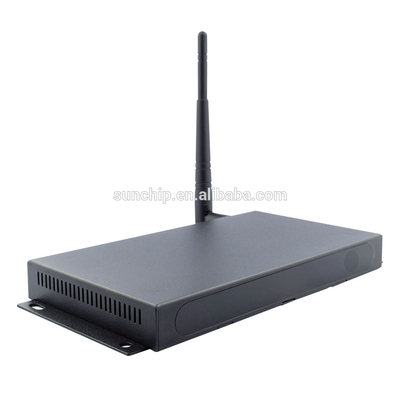

Android Player Box:
Application Scenarios:
Networking Information Release System consists of information collection, control center, display terminal and transmission network.
Packaging Information:
Packing Box:335*185*65mm
Carton Box:350*350*203mm 5PCS/Carton
