|Features:||Dual Band WiFi||Place Of Origin:||Guangdong, China|
|Model Number:||AD-0150-RK3399||Processor:||Rockchip RK3399|
|Brand Name:||SUNCHIP||Product Name:||Digital Signage Advertising Media Play Box|
|Material:||Metal||Operation System:||Android 9.0|
|RAM:||1GB,2GB,4GB Optional||ROM:||8GB,16GB,32GB,64GB Optional|
|OEM/ODM:||Support Custom LOGO||Language:||Support Multi Languages|
|Apps:||Google, Youtube, Google Play Store, Etc||Bluetooth:||4.0 Version|
|Original Place:||Shenzhen, Guangdong||Package:||Carton Box, 5PCS/CTN|
OEM HD Media Player Box,
Android 9.0 HD Media Player Box,
Android 7.1 digital signage Player Box

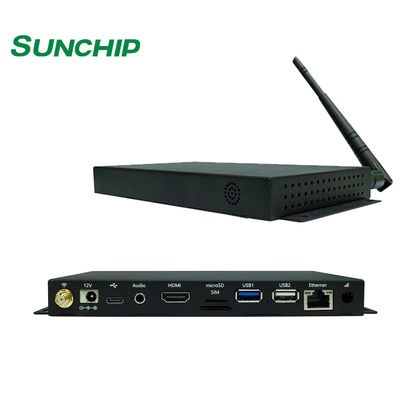

OEM HD Media Player Box RK3399 Rooted Android 7.1 Set Top Box
What is CMS?
The network controller of the information release system is based on the B/S architecture of the network platform. Its unique distributed area management technology truly realizes the communication mode of different terminals in the same system to distinguish the audience, so that the advertisements can be played to distinguish different audiences and be targeted. Broadcast advertisements and the release of multimedia information. Through the information release management software, it is possible to remotely manage and control thousands of network advertising machines distributed on the network platform. It has broad application prospects in the advertising and information release markets such as building TV, banks, communities, stations, and airports.
How to connect the advertising player box to the LCD advertising player?
The advertising player box is a small computing terminal device. As long as it is connected to the LCD advertising machine through HDMI or other interfaces, web browsing, network video playback, application installation can be realized on the LCD advertising machine, and the background software can also be used. Edit, control and distribute remote programs.
1. First, we prepare the advertising player box and HDMI cable, then power on the LCD advertising player, and connect the two with the HDMI cable.
2. Next, connect the LCD advertising machine to the Internet, and connect through a wired network or WIFI network. The bottom right of the LCD advertising machine shows that the connection is successful and you can go online normally.
3. Then, we take the Android motherboard network background as an example, log in to its website to log in to the background account password.
4. After the above steps are completed, we can edit and distribute the program of the advertising player box through the background software, and the advertising player box is connected to our LCD advertising machine, which is only a display function at this time.
5. After editing the program in the background software, we can directly issue the program to our advertising machine through the principle of remote control, and schedule and check it. This is the connection method between the advertising player box and the LCD advertising machine. In general, it is first After connection, the background data transmission and connection are carried out through the motherboard software built in the advertising player box.
6. The advertising player box is not only for LCD advertising machines, it is widely used, and it has coverage in the commercial display industry, including LCD splicing screens, LED displays, touch inquiry machines, and so on.
|System||CPU||RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4|
|Operation System||Android 7.1 (Linux OS optional)|
|Network||WiFi||802.11a/b/g/n/ ac (2.4G/5G optional)|
|Cellular||4G LTE FDD/LTE TDD/WCDMA/GSM (optional)|
|Interface||USB port||Support USB2.0 host*1|
|USB port||Support USB3.0 host*1|
|DC||DC power supply 12V in|
|SD Card||TF Card (micro SD card), up to 64GB|
|HD||Support HD_4K 2.0 out|
|Display interface||EDP interface_2K output /LVDS interface_1080P output(optional)|
|Speaker interface||8Ω 5W*2(optional)|
|UART interface||UART2 interface*1(optional)|
|IR Remote Control||Support IR Remote Control|
|USB extension port||Support USB extension host*1(optional)|
|AUDIO Out||1*3.5mm Jack Stereo headphone output|
|Media Parameter||Video format||Support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player|
|Video format||Support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.2 player|
|Text processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|system management||APK installation||APK Installer|
|Root permission||Original Android system,open root permissions,available in customized product development|
|Remote control||Real-time remote monitoring, system crash recovery, 7*24 hours unattended|
|OTA upgrade||Support OTA remote upgrade|
|Others||Dual display||Support dual display different contents play(optional)|
|Accelerometer||Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation|
|Accessories||Adapter||Power adapter 12V/3A|
