Product Details:
|
| Resolution: | 1980*1080 | CPU: | RK3288 |
|---|---|---|---|
| RAM: | 2GB / 4GB (optional) | ROM: | 8GB / 16GB / 32GB / 64GB |
| Touch Screen: | 10 Pt Capacitive Touch | Brightness: | 250nits-500nits |
| High Light: | PDDR3 Wall Mount Touch Screen,500nits Digital Signage Lcd Display,500nits Wall Mount Touch Screen |
||

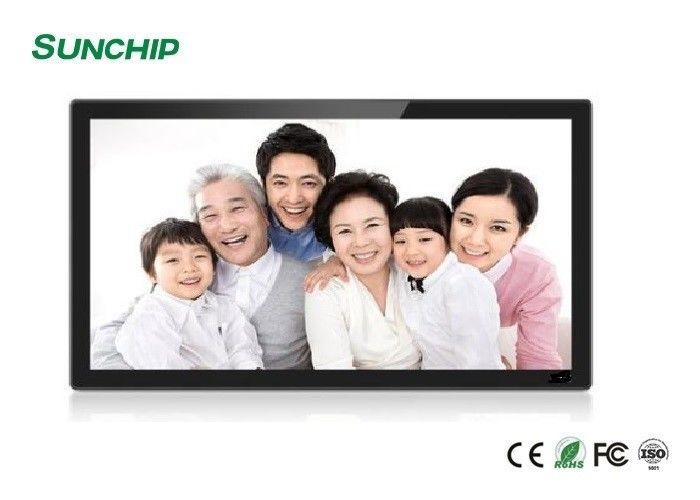

PDDR3 Wall Mount Touch Screen 500nits Digital Signage Lcd Display
Features of LCD Digital Signage :
1. 43” LCD 1920x1080 HD resolution with 10-point projected capacitive multi-touch
2. Support wireless compatible with external USB 3G/4G networks (Optional)
3. VESA mount built-in with 75mm x 75mm
4. Access to all available Android applications , Supported rooted Android system
5. Internet video Streaming: UDP multicast, RTSP, HLS streaming
6. System Upgrading by OTA Network
7. Support User assign the APK for execution right after the system starts up
Specification of LCD Digital Signage:
| CPU | Rockchip RK3288 Cortex-A17 Quad core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| ROM | EMMC 8GB/16G/32G/64G optional default: 8GB |
| Display interface | LVDS (single way,6 bit dual-way, 8 bit dual-way), Resolution 1920x1080 |
| EDP interface, Resolution max 4K | |
| Screen voltage | Support 3.3V/5V/12V(optional) |
| Touch Screen | 10 points capacitive touch |
| Network | RJ45 interface, ethernet 10/100/1000M |
| Wi-Fi 802.11b/g/n, BT4.0 | |
| Support 4G LTE (Optional) | |
| Image rotation | Support 0°, 90°, 180°, 270°, manual control or automatic, gravity (optional) |
| RTC | Built in internal battery for Real time clock |
| interfaces | Support MIPI camera, max 5MP |
| Support USB camera, max 2MP | |
| HD out | |
| 6*USB HOST (Support USB camera @500w, USB printer, USB stick, mouse, keyboard, standard USB peripherals) | |
| Serial ports x 3(1*UART+2*UART or RS232), support external devices (NFC module, printer, card reader etc.) | |
| 6*IO | |
| TF card slot | |
| D classamplifier,5W*2 8R | |
| support microphone | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback |
| image | Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify |
| Power supply | input:AC100-240V.50-60HZ, output: DC12V, 3A |
FAQ:
1. Q: Are you a factory or trading company?
A: We are a LCD digital signage & advertising kiosk manufacturer. We integrate R&D team, manufacture,quality control team, sale and after-sale service.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen, Guangdong Province, China. About 15 minutes by car from Shenzhen airport we pick you up there. All our clients from home or abroad are warmly welcome to visit us!
3. Q: For the first order, can we place a sample order?
A: It's our honor to offer you sample.
4. Q: About the quality control, how will your factory guarantee it?
A: Quality is priority. We have Total Quality Management System to control LCD advertising equipment's quality. We have our own professional engineers who have rich developing and researching lcd advertising equipment experience. In the meain time our factory has gained FCC, CE, RoHS authentication, etc.
5. Q:What is the delivery time?
A: For the one have in stock finish product, the delivery time is within 3- 5 days; with enclosure only in stock is 7-10 days; without in stock 20-25 days; for customized samples and large quantities bulk order, the delivery time is 20-30 days.
6. Q: What is the price? And do you provide customization, OEM or ODM service?
A: Our price is depend on the functions, sizes, designs, quantities, applications etc, please send the inquiry and tell us more about your requirements and project then enable us to quote the price accordingly. We have structure engineer team, which can provide customized services for you
7. Q: What is your after-sale service?
A1: Best service provided for our customers not only before sale service but whole life of the goods.Warranty period:one year for whole machine
