Product Details:
|
| Material: | Metal | CPU: | RK3399 Dual Core Cortex-A72+quad Core Cortex-A53,GPU ARM Mali-T860MP4 |
|---|---|---|---|
| RAM: | LPDDR4 4GB/8GB(optional) | Flash: | 16GB/32GB/64GB(optional) |
| Operation System: | Android 9.1 （Linux OS Optional） | Interface: | USB,Type-C,DC,SD Card,HDMI,RJ45 Etc |
| Color: | Black Or Optional | ||
| High Light: | LPDDR4 4GB HD Media Player Box,LPDDR4 8GB HD Media Player Box,Android 9.1 Media Player Box 1080p |
||

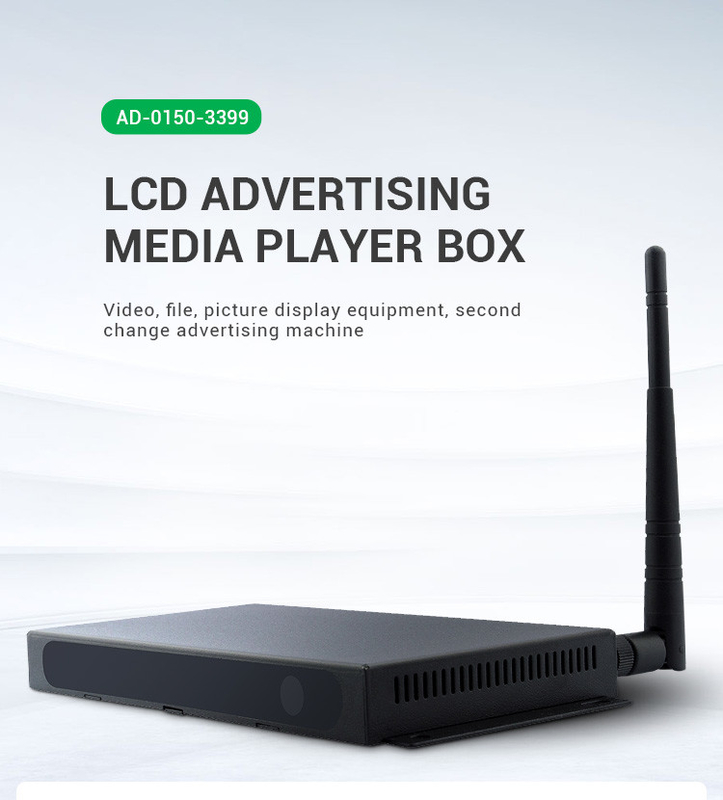

LCD Advertising HD 1080P Media Player Box witl Android 9.1 Operation System
1. Support local area Network/ Wide Area Network, WIFI /3G/ 4G
2. Offer sever for free, easy to use
3. Support 2.5 inch hard disk, USB disk, SD card and CF card
4. Network interface: Internert 10/100m, wireless network: 802.11/G

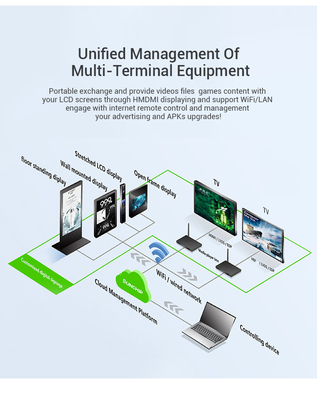

5. The server can send instant scrolling caption content to the terminal player.
6. Support video, picture and scrolling text to be played in full screen and divided screen.
7. When internet disconnects, the player will play the per-edited content as a single version machine.
8. Pictures and text in different sections can be divided flexibly, video section is user-defined.
9. Support text and picture to be played in scrolling way, support intercut function and timing turning on and off.
10. Various resources can be played, including video, audio file, picture and text.
| System | CPU | RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4 | ||||||||||
| RAM | LPDDR4 4GB/8GB(optional) | |||||||||||
| Flash | 16GB/32GB/64GB(optional) | |||||||||||
| Operation System | Android 9.1 (Linux OS optional) | |||||||||||
| Network | WiFi | 802.11a/b/g/n/ ac (2.4G/5G optional) | ||||||||||
| Cellular | 4G LTE FDD/LTE TDD/WCDMA/GSM (optional) | |||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||
| Ethernet | 10M/100M/1000M Ethernet | |||||||||||

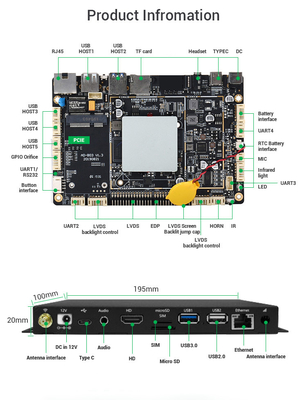

| Interface | USB port | support USB2.0 host*1 | ||||||||||
| USB port | support USB3.0 host*1 | |||||||||||
| type-c interface | type-c*1 | |||||||||||
| DC | DC power supply 12V in | |||||||||||
| SD卡 | TF Card (micro SD card), up to 64GB | |||||||||||
| HD | support HD_4K 2.0 out | |||||||||||
| Display interface | EDP interface_2K output /LVDS interface_1080P output(optional) | |||||||||||
| Speaker interface | 8Ω 5W*2(optional) | |||||||||||
| UART interface | UART2 interface*1(optional) | |||||||||||
| IR Remote Control | support IR Remote Control | |||||||||||
| USB extension port | support USB extension host*1(optional) | |||||||||||
| RJ45 | Ethernet port | |||||||||||
| AUDIO Out | 1*3.5mm Jack Stereo headphone output | |||||||||||
| Media Parameter | Video format | support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player | ||||||||||
| Video format | support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.2 player | |||||||||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||
| E-books | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||
| Image format | JPG,BMP,PNG | |||||||||||
| system management | APK installation | APK Installer | ||||||||||
| Root permission | original Android system,open root permissions,available in customized product development | |||||||||||
| Remote control | Real-time remote monitoring, system crash recovery, 7*24 hours unattended | |||||||||||
| OTA upgrade | Support OTA remote upgrade | |||||||||||
| Others | Dual display | Support dual display different contents play(optional) | ||||||||||
| Accelerometer | Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation | |||||||||||

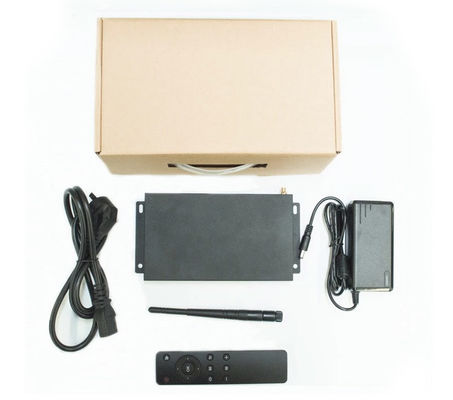

| Accessories | Adapter | Power adapter 12V/3A | ||||||||||
| Manual | Standard | |||||||||||
| Warranty card | Standard | |||||||||||
