Multifunctional Android media Player Box With 3G / 4G Convenient Management

Multifunctional Android media Player Box With 3G / 4G Convenient Management
Multifunctional Android media Player Box With 3G / 4G Convenient Management Multifunctional Android media Player Box With 3G / 4G Convenient Management

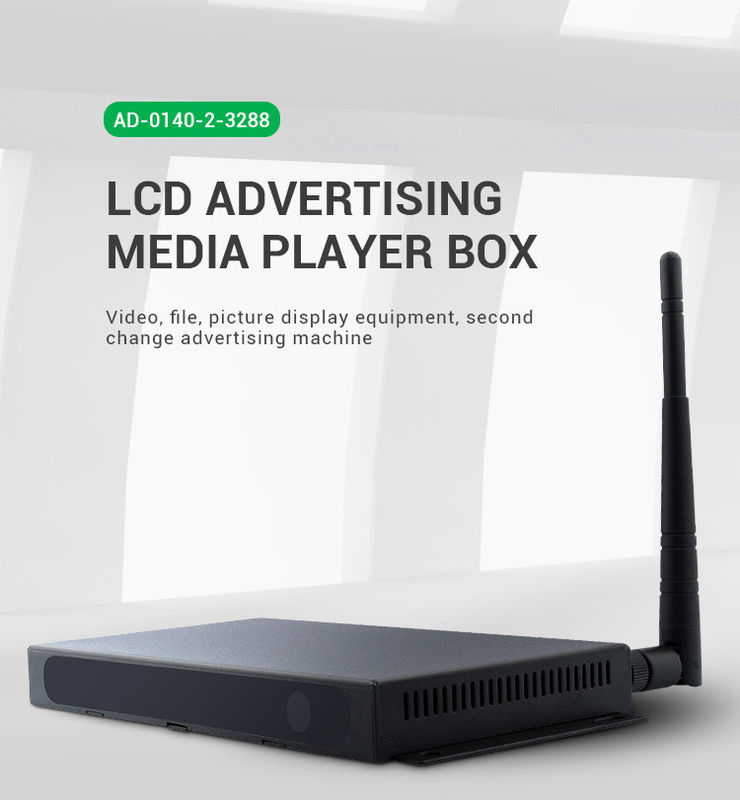

Large Image :  Multifunctional Android media Player Box With 3G / 4G Convenient Management

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW
Certification: ISO9001, CE, ROHS, FCC
Model Number: AD-K01 BOX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: About 20-28 days for mass-production; About 3 days for samples;
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

Multifunctional Android media Player Box With 3G / 4G Convenient Management

Description
HD: HD Out & HD In Display Interface: EDP Interface /LVDS Interface Optional
CPU&GPU: Rockchip RK3399 Octa-core TP: Support Touch Panel
Operating System: Android 7.1 OS/ 9.0 OS WiFi: Support For Wi-Fi 802.11b / G / N / Ac Protocol.
Network: 10M/100M/1000M Ethernet; Gravity Induction: Support 0°90°180°270°manual/automatic Rotation
High Light:

advertising player box

,

digital signage player box

Android WIFI Streaming HD media Smart Advertising Media Player Box with 3G/4G SUNCHIP

AD-K01 BOX-RK3399 SUPPORT HD IN&OUT



Contents Management Software (CMS)

CMS is one of the most popular digital signage online management software which allows people quickly and easily to manage centrally controlled network of LCD advertising screens. And CMS can be hosted on On-Premise and Cloud Sever running 24/7 no maintenance hassle.




All of our digital signage products including wall mounted advertising displays, floor standing digital signage kiosks, digital signage media players., etc can be remotely online managed via CMS system. CMS supports remote control, screen layouts edit, playlist scheduling, multi-accounts management, versatile media format including image, video, audio, scrolling message, web page, streaming and live tv feeds., etc. We have numerous of clients from all over the world who are using our CMS system, And, now thousands of digital signage players /advertising displays / digital signage totems are working with our CMS software globally.





Product Advantages:

* life-free but excellent contents management software;
* powerful CPU and GPU supports 4K UHD H264/H265 decoding;
* portrait & landscape orientation for flexible installation of TV;
* industrial grade quality for 24x7 running environment;
* USB plug & play for tech-phobia hassle-free contents update;
* online remote contents update with user-defined layouts;
* power timing on and off for convenient management;
* multi-accounts perfect for multi-clients management






PRODUCT  SPECIFICATIONS:

Basic Hardware Specs & Basic Software Specs:


Model No.: AD-K01 RK3399 Hexa-Core chipset with Google Android 7.1

Hardware Spec
System CPU&GPU Rockchip RK3399 daul core Cortex-A72+quad-core Cortex-A53 CPU&ARM Mali-T860MP4 GPU
RAM DDR3 2G/4G Optional
Memory EMMC 8GB/16G/32G/64G Optional
Operating system Google Android 7.1
Network WiFi With Wifi & BT module, support for Wi-Fi 802.11b / g / n / ac protocol.
Bluetooth Support BT4.0
Ethernet With RJ45 interface, support for 10/100 Ethernet
Language Multi-Language
Built-in real-time clock battery YES





Interface
Interface USB interface 4 USB HOST, 1 USB OTG (support POE power supply); Support USB Camera
MIPI Support MIPI interface camera, up to 500W pixels
DC Input:AC100-240V.50-60HZ, Output: DC12V 3A
TF card SD card, maximum support 64GB
HD HD 2.0 output
Display interface LVDS interface (single, 6 dual, 8 dual). Support the maximum resolution of 1920x1080, support 7 "-84" display;
EDP screen interface, support for resolution 1920x1080;
Onboard backlight Support 3.3V/5V/12V Optional
Touch Screen Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch).
Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.
Speaker interface Class D amplifier: 1.5W * 2 8 ohm,
USB port extension 3 groups of serial port. Supports external serial device devices (3G module, NFC module, printer, swipe card reader, etc.)
RJ45 10/100M
Headset/AUDIO Out support for the microphone





Media Parameter
Media Playback Video format Support for 2160P @ 24FPS decoding of video formats such as H.264, MPEG2, VP6, VP8, MVC, etc. Online videos from YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playing.
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook   PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Image Format Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function





System Management
System Management APK install APK Installer
Root permission Original Android system, open root privileges, product development can be customized
Remote control Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended
OTA upgrade Support OTA remote upgrade
Accessories
Accessories Adapter 12/3A
User's Guide Standard
Warranty Card Standard





Multifunctional Android media Player Box With 3G / 4G Convenient Management 0Multifunctional Android media Player Box With 3G / 4G Convenient Management 1




PRODUCT SCENARIOS

Multifunctional Android media Player Box With 3G / 4G Convenient Management 2

Multifunctional Android media Player Box With 3G / 4G Convenient Management 3
