Product Details:
|
| LCD Screen: | 55'' | CPU&GPU: | RK3288 Chipset |
|---|---|---|---|
| Resolution: | 1920*1080 | Interactive Mode: | Touch (optional) |
| RAM: | 2GB/4GB (optional) | ROM: | 8GB/16GB/32GB(optional) |
| Operating System: | Android 6.0 OS Optional | WiFi: | 802.11 B/g/n_2.4G ( Support 5G Optional) |
| Ethernet: | 10M/100M/1000M | Network: | Support 4G(optional) |
| High Light: | floor standing lcd advertising display,free standing digital signage |
||

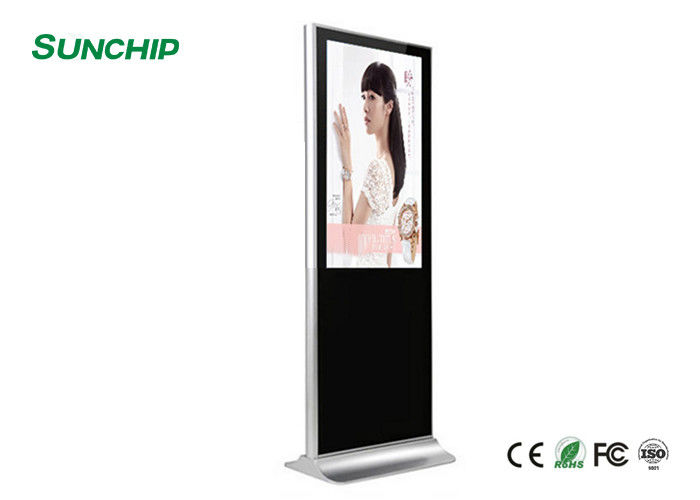

factory direct supply 43 49 55 65 inch LCD totem floor standing digital signage lcd WIFI 4G advertising display screen
Stand Alone Advertising Display from SUNCHIP ADW
Overview
RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution, support Android5.1 system. Supports the decoding of the popular audio & video formats and images. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display. With HD interface, support 4K video playing. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.
HIGHLIGHTS
A. High performance: The RK3288 uses the Quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
B. High stability: RK3288 Android integrated board, adds their own unique technology in the hardware & software to ensure the stability of the product to make sure the device 7*24 hours unattended.
C. High integration: RK3288 Android integrated board integrates Ethernet, WIFI, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
PRODUCTS SPECIFICATIONS
|
|||||||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional) | |||||
| Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 5.1/ 6.0 | |||||
| Interactive mode | infrared touch | Optional | ||||
| ten-points capacitive touch | ||||||
| No-touch/infrared remote control | ||||||
| Display | LCD Screen | 55'' | ||||
| Resolution | 1920*1080 | |||||
| Contrast | 1400:1 | |||||
| Screen brightness | 450 cd/m2 | |||||
| Screen proportion | 16:9 | |||||
| Network | WiFi | 802.11 b/g/n_2.4G ( support 5G optional) | ||||
| Mobile network | Support 4G(optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100M/1000M Ethernet | |||||
| Interface | ||||||
| Interface | USB interface*2 | Support USB host*2 | ||||
| USB_OTG | USB_OTG*1 | |||||
| AC | AC 100V-240V (50HZ-60HZ) | |||||
| TF card | Maximum support 128GB | |||||
| RJ45 | 10/100/1000M Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Speaker output | Support 8 ohm 3W speaker dual channel output interface | |||||
| Buttons/Keys | Buttons/Keys | defaulted none | ||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,VC1,VP8,4K VP9,4K 10bits H265/H264,HDR10,HLG HDR,Maximum support 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Power Adapter | Standard | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 796*459.92*1903.8 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Camera | the front camera 200W/500W(Optional) | |||||
| Recording | Support high-quality recording function (optional) | |||||
| OSD Language | Multi-language OSD Operation | |||||
PRODUCT SCENARIOS
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
