Product Details:
|
| Operating System: | Android 6.0/7.1/8.1-9-10 | CPU&GPU: | RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764 |
|---|---|---|---|
| LCD Panel: | 15.6" | Resolution: | 1920*1080 |
| Contrast Ratio: | 800:1 | Ethernet: | 10M/100M Ethernet |
| TF Card: | Support Up To 64GB | OTA Upgrade: | Support OTA Remote Upgrades |

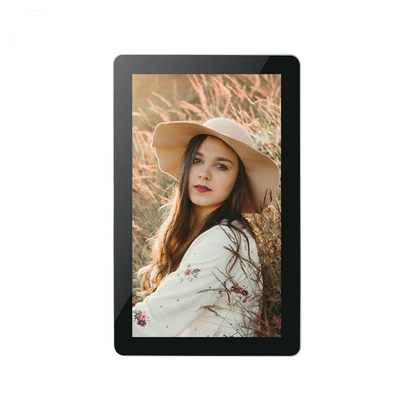

Sunchip 15.6 Inch LCD Commercial interactive touch screen digital signage Desktop Model With mounted Bracket
Model No: AD-15.6ʺ-3288(Z37M)
If personalization is the future of business, interactive digital signage is the key to that future.
Yes, interactive digital signage puts the users at the forefront, making it one of the most productive marketing tools.
The traditional digital signage boards play promotional content, advertisements, and information that the general audience may simply view and pass on. But when you introduce interactivity, you revamp your marketing strategy.
How?
Interactive digital displays offer users a ‘personalized experience’ by putting them in the driving seat and allowing them to control what they see on the screens and how they see it.
As a result, it equips the brands with uniquely dynamic content that helps them stand out with more excitement & engagement on the platter for their audience.
You’ll surely agree that lack of personalization, mainly in the case of retail marketing through digital signage, has caused much toil-and-moil for marketers. But, with the interactive element rising to the surface, offline and online marketing channels are now flooded with super-engaging promotions and brand stories that unfailingly generate and sustain the interests of the audience.
Strong resistance to electromagnetic interference and electromagnetic compatibility.
Specification
| System | CPU | RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 | |||||||||||||
| RAM | 2GB | ||||||||||||||
| Internal memory | 16GB | ||||||||||||||
| Operation system | Android 6.0/7.1/8.1-9-10 | ||||||||||||||
| Touch screen | 10 point capacitive touch | ||||||||||||||
| Display | Panel | 15.6" | |||||||||||||
| Resolution | 1920*1080 | ||||||||||||||
| Contrast ratio | 800:1 | ||||||||||||||
| Luminance | 250cd/m2 | ||||||||||||||
| Aspect Ratio | 16:9 | ||||||||||||||
| Network | WiFi | 802.11b/g/n | |||||||||||||
| Buletooth | Bluetooth 4.0 | ||||||||||||||
| Ethernet | 10M/100M Ethernet | ||||||||||||||
| Interface | USB x2 | Support USB host*2 | |||||||||||||
| Type-C | Type-C OTG*1 | ||||||||||||||
| DC | DC power 12V input | ||||||||||||||
| TF card | Maximum support 64GB | ||||||||||||||
| HDMI | Support HDMI output | ||||||||||||||
| RJ45 | Ethernet port | ||||||||||||||
| speaker | 3W * 8Ω * 2 | ||||||||||||||
| Earphone | 3.5mm earphone | ||||||||||||||
| Key | Key | single key | |||||||||||||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160 | |||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. | ||||||||||||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, | ||||||||||||||
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | ||||||||||||||
| Photo | JPG,BMP,PNG | ||||||||||||||
system management |
APK installation | APK installation | |||||||||||||
| Root permissions | Original ecological Android system, open root permissions, customizable development | ||||||||||||||
| Remote control | Real-time remote monitoring, system crash self recovery, 7*24 hours unattended | ||||||||||||||
| OTA upgrade | Support OTA remote upgrades | ||||||||||||||
| Camera | Default None(2MP/5MP optional) | ||||||||||||||
| Language | Multi-language | ||||||||||||||
| Accessories | Adapter | Adapter,12V/3A | |||||||||||||
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
WELCOME TO INQUIRE US FOR ANY PRODUCTS!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
