RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant

Certification
China SHENZHEN SUNCHIP TECHNOLOGY CO., LTD certification
China SHENZHEN SUNCHIP TECHNOLOGY CO., LTD certification
Customer Reviews
Awesome news! I know your team has worked hard, thanks for finish the project so quickly.

—— Brian Walker

I like your sample very much. Looking forward to growing our partnership.

—— Jenny Westbrook

I'm Online Chat Now

RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant

RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant
RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant
RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant

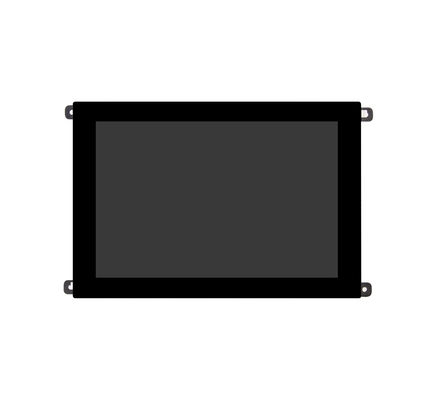

Large Image :  RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW, SUNCHIP
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-1506
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: If in-stock, 3-5 days; If out of stock, 25-30 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10000 PCS per Month

RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant

Description
Solution: RK3288, RK3399, PX30, RK3566, RK3568 Etc. Optional Screen Size: 15.6'' (optional)
Screen Type: Touchscreen (optional) LCD Panel Resolution: 1920*1080
Housing Type: Plastic + Metal Operation System: Android 6.0 (optional) 7.1, 9.0 Etc.
Network Options: Wifi , LAN Network , Bluetooth 4.0, 4G LTE Start-Up: AutoStart By Plug-in The Power-adapter
Product Type: Industrial / Commercial Auto-rotate: YES

RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant



LCD Digital Signage Display features:



A. Touchscreen & Non-Touchscreen

B. Root permission ANDROID OS optional

C. WIFI network

D. LAN (RJ45) input for network connection (not for all models)

E. 4G connection via 4G LTE Module inserted or extra 4G small board (optional, not included)



SPECIFICATIONS for Touch Screen Digital Signage Kiosk SKD Module:



CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency 1.8GHz
RAM LPDDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G Optional

Display interface



LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
EDP interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100 Ethernet.
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function
Real Time Clock Built-in (optional external) real-time clock power supply battery





Interface device







Support MIPI interface camera, up to 500W pixels
3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.)
SD card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A

Operating system Android 8.0 and above
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support multi-lingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
note
Weather + clock
recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK installer
The original ecological Android system, open root permissions, can be customized product development
Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade




Android Interactive Digital Signage Display from SUNCHIP



1. Our Android Interactive Digital Signage are industrial / commercial models, specially designed and used in a retail environment, online digital signage screens, info touch kiosk, etc.



2. The Android System has some standard apps to be installed, like a browser, google play store, explorer, and some extra apps.

You can install your own application on it. For instance, the digital signage app or kiosk web app, webstore, etc.



PRODUCT SCENARIOS

RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant 0RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant 1

RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant 2

PACKAGING DETAILS for Interactive Digital Signage



1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.





RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant 3

About Sunchip:



RK3288 RK3399 Wall Mounted Interactive Touch Screen Digital Signage Kiosk SKD Module For hotel and restaurant 4



SUNCHIP product list:

1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 4KAndroid media player box for digital signage advertising: RK3399, RK3288, RK3328.

3, 8KAndroid Player Box for Industrial-Control Application: RK3588.

4, Stretched lcd Display signage, support ODM.

5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

6, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

8, Embedded touch desk: such as 32inch.

9, Face recognition temperature detection terminal machine: such as 8inch.
