Product Details:
|
| LCD Screen: | 43'' (optional 32'' 55'' 65'') | Interactive Mode: | Touch |
|---|---|---|---|
| Language: | Multi-language | Display Interfaces: | LVDS, EDP, |
| Resolution: | 1920*1080 | RAM; ROM: | 2GB/4GB (optional); 8GB/16GB/32GB(optional) |
| WiFi: | 802.11 B/g/n_2.4G ( Support 5G Optional) | Network: | 10M/100M/1000M Ethernet; Support 4G(optional) |
| High Light: | digital signage kiosk,floor standing kiosk |
||

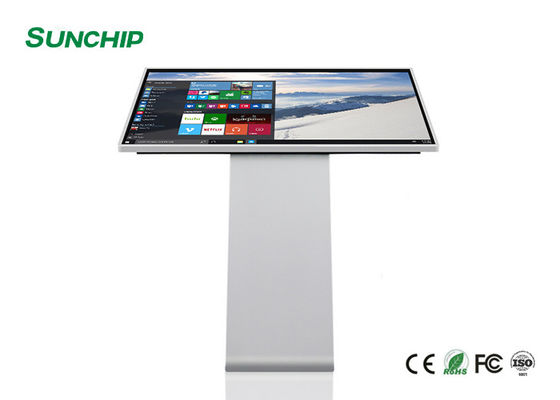

SUNCHIP 32 43 49 inch floor standing lcd digital signage optiona touch scree horizontal digital signage inquiry machine
PRODUCTS SPECIFICATIONS
Hardware Specs:

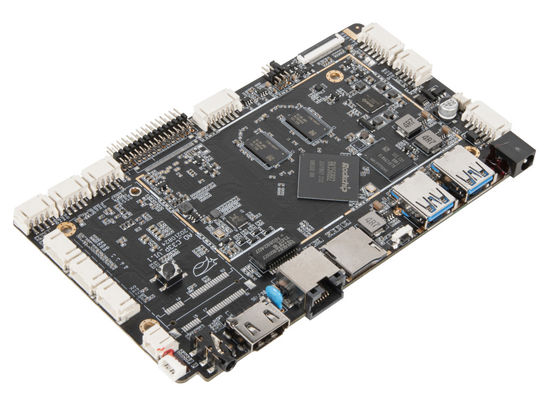

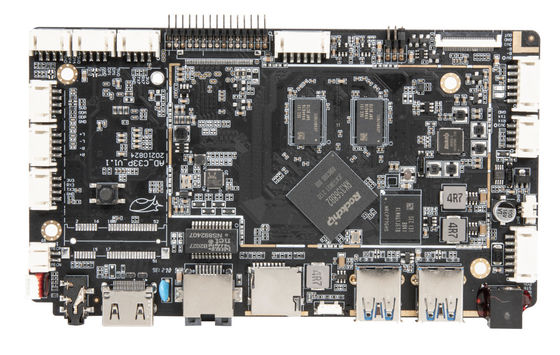

| CPU | Rockchip RK3288 Cortex-A17 Quad core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| ROM | EMMC 8GB/16G/32G/64G optional default: 8GB |
| Display interface | LVDS (single way,6 bit dual-way, 8 bit dual-way), Resolution max 1920x1080, support 7"-84" display |
| EDP interface, Resolution max 4K | |
| Screen voltage | Support 3.3V/5V/12V(optional) |
| Touch Screen |
I2C interface (support resistive touch, capacitive touch) Support USB IR multi touch, sonic multi touch, optical multi touch |
| Network | RJ45 interface, ethernet 10/100/1000M |
| Wi-Fi 802.11b/g/n, BT4.0 | |
| Support 4G LTE | |
| Image rotation | Support 0°, 90°, 180°, 270°, manual control or automatic, gravity (optional) |
| RTC | Built in internal battery for Real time clock |
| interfaces | Support MIPI camera, max 5MP |
| Support USB camera, max 2MP | |
| 6*USB HOST (Support USB camera @500w, USB printer, USB stick, mouse, keyboard, standard USB peripherals) | |
| Serial ports x 3(1*UART+2*UART or RS232), support external devices (NFC module, printer, card reader etc.) | |
| 6*IO | |
| TF card slot | |
| D classamplifier,5W*2 8R | |
| support microphone | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback |
| image | Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify |
| Power supply | input:AC100-240V.50-60HZ, output: DC12V, 3A |
Software Specs:
| OS | Android 6.0 OS |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | Multi language |
| Recording | Support MP3, WMA, 3gpp, Amr, etc., the system comes with an Amr format |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Note | |
| Recording | |
| Document | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input methods | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Gmail | |
| OS management | APK Installer |
| Original eco-Android system, open root privileges, can be customized product development | |
| Real-time remote monitoring, system crash recovery automatically, 7 * 24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |
Support Different kinds of Holder Pedestal (optional)
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
