Product Details:
|
| CPU: | ARM Cortex-A9 Quad Core; Mali 400 Quad. Cores 3D GPU | LCD Panel: | TFT 35'' |
|---|---|---|---|
| DDR, EMMC: | 1GByte LPDDR3, 8GByte | Max Resolution: | 2880(H) X158(V) |
| Active Area: | 878.4 (H) X 48.19 (V) (35” Wide Diagonal) | Bezel Opening Area: | 880.4(Length) * 50(Width) |
| Display Operation Mode: | Normally Black | Interface Style: | Standard Android Tablet UI |
| WIFI: | 2.4G IEEE 802.11a/b/g/n | Viewing Angle (H / V): | Typical 178 / 178 |
| Brightness: | Typical 400 | Contrast Ratio: | Typical 3000 |
| USB: | OTG*1 (Micro USB), Micro USB *2 | TF Slot: | 1 *PUSH-PUSH TF Card Reader |
| Rotation Function: | Unachievable | ||
| High Light: | shelf edge lcd display,long lcd screen |
||

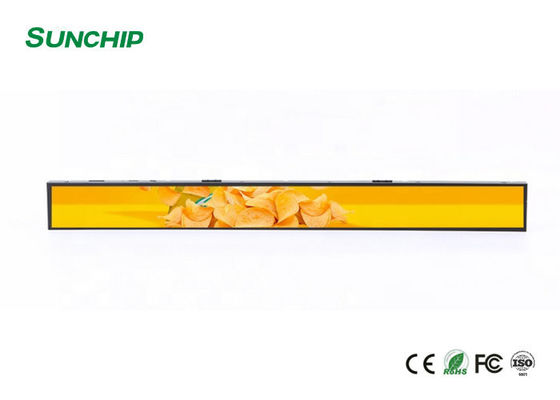

Stretched Bar LCD display monitor strip display digital signage indoor advertising 19.1/23.1/28/35 inch
Features:
1. 19,1’’, 21.9’’, 23.1’’, 28’’, 28.8’’, 35’’, 36.6’’, 38’’ etc. size for option
& screen size can be customized
2. CPU (RK3128/RK3288/ A9)
3. Android OS for option
4. LCD bar screen with WIFI, BT, LAN, 4G LTE optional
5. Slim and light design.
6. Firm and durable case, made of metal plate.
7. VESA standard wall mount, able to hold kiosk tightly.
8. Able to split screen, able to be double sided, able to make vertical screen.
9. LED backlight, high brightness, clear image.
10. Suitable for super market, shopping mall, subway station, bus station, etc.
PRODUCTS SPECIFICATIONS
| Item | Specification | Unit | |
|
Screen Parameters |
Active Area | 878.4 (H) x 48.19 (V) (35” wide diagonal) | mm |
| Max Resolution | 2880(H) x158(V) | / | |
| Bezel Opening Area | 880.4(Length) * 50(Width) | ||
| Frame rate | 60 | Hz | |
| Driver Element | a-Si TFT Active Matrix | / | |
| Pixel Number | 158 x 2880 | pixel | |
| Pixel Pitch (Sub Pixel) | 0.11025 (H) x 0.334(V) | mm | |
| Pixel Arrangement | RGB Vertical Stripe | / | |
| Display Colors | 1.07G colors (8-bit+FRC) | ||
| Display Operation Mode | Transmissive mode / Normally black | ||
| Surface Treatment | AG~40% / Hardness 2H | ||
| Rotation Function | Unachievable | ||
| Viewing Angle (H / V) | Typical 178 / 178 | degree | |
| Brightness | Typical 400 | cd/m2 | |
| Contrast Ratio | Typical 3000 | / | |
| Item | Specification | Remarks | |
|
Finished Device Parameters |
CPU | ARM Cortex-A9 Quad Core | |
| GPU | Mali 400 Quad. Cores 3D GPU | ||
| DDR | 1GByte LPDDR3 | Max Support 2GByte | |
| eMMC | 8GByte | Max Support 128GByte | |
| LCD | 35’’ stretched Display, 158*2880 resolution | ||
|
WIFI |
2.4G IEEE 802.11a/b/g/n |
||
| TF slot | 1 个 PUSH-PUSH TF card reader | Max Support 128GByte | |
|
Finished Device Parameters |
Item | Specification | Remarks |
| HDMI | no | ||
| Microphone | no | ||
| keys | reset*1 | ||
| Camera | no | ||
| USB | OTG*1 (Micro USB), Micro USB *2 | ||
| Nominal Input Voltage | AC 100V-240V | ||
| Rated Frequency | 50/60Hz | ||
| Input Current | 2A | ||
| OS | Android 5.0 | ||
| Interface style | standard Android tablet UI | ||
| Format for pictures | JPG,JPEG,BMP,GIF,PNG etc formats | ||
|
Videos playing |
AVI, MOV, MKV, MP4, M4V, FLV, 3GP, 3G2,3GPP, MPG, Capability for video decoding:H.265(HEVC)4K2K@30fps, 1080P@30fps,H.264(BP/MP/HP level 4.1, 1080p@30fps), H.263(profile 3,1080p@30fps), MPEG-1(MP, 1920X1080@30fps), MPEG-2(MP,1920X1080@30fps), MPEG-4(ASP,1920X1080@30fps), Xvid (Home theater 1920X1080@60fps), MJPEG(baseline,1920X1080@60fps), Divx(3.11,1280x720@60fps)； |
||
| input | Support Android pinyin input | ||
| APK | Support third-party APK | ||
| Size | 891.6(Length) * 60.4(Width)*16.0 mm | ||
| Languages |
English, Chinese Simplified, Chinese Traditional, Japanese, Korean, French, German , Spanish, Portuguese, etc. 32 languages |
