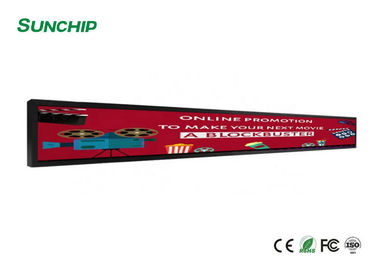

Wifi 4G Ultra Wide LCD Panel Simple Install Support Many Media Formats

Wifi 4G Ultra Wide LCD Panel Simple Install Support Many Media Formats
Wifi 4G Ultra Wide LCD Panel Simple Install Support Many Media Formats

Large Image :  Wifi 4G Ultra Wide LCD Panel Simple Install Support Many Media Formats

Product Details:
Place of Origin: CHINA
Brand Name: ADW
Certification: CE, ROHS, FCC
Model Number: AD-L1913-RK3288
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: About 30 days for large orders
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

Wifi 4G Ultra Wide LCD Panel Simple Install Support Many Media Formats

Description
Product Description: 19.1 Inch AIO Advertising Display CPU/GPU: RK3288 Quad-core
Mobile Network: Built In 4G LTE(optional, Default None) POE Function: Support POE (optional, Default None)
Resolution: IPS 1920*338 WiFi: 802.11b/g/n(802.11a/b/g/n/ac Optional)
Bluetooth: Bluetooth 4.0 Ethernet: 10M/100/1000M Ethernet
OTA Upgrade: Support OTA Remote Upgrades
High Light:

long lcd screen

,

ultra wide lcd display





 Hot selling 19.1'' metal advertising digital signage stretched LCD Bar WIFI 4G display





Main Features:

· Resizing LCD (Stretched LCD, Bar LCD)

· Ultra-Wide Screen

· Wide View Angle

· Flexible Central Management System

· Multi-zone, Multi-media Display

· Web-based Scheduling and Content Management

· Simple to Install, Manage and Use

· Easy Deployment and Operation

· Slim Bezel

· Stretched LCD Monitor of 19,1’’, 21.9’’, 23.1’’, 28’’, 28.8’’, 35’’, 36.6’’, 38’’  are available

· Support many media formats and animation text

· 365 x 24 hours working






PRODUCTS SPECIFICATIONS


System CPU RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764
RAM 2GB/4GB (optional)
Storage 8GB/16GB/32GB(optional)
Operation system Android 6.0
Display LCD panel 19.1"
Resolution IPS 1920*338
Contrast ratio 1000:1
Brightness 700cd/m2
Aspect Ratio 16:2.8
Network WiFi 802.11b/g/n(802.11a/b/g/n/ac optional)
Bluetooth Bluetooth 4.0
Mobile Network Built in 3G/4G LTE(optional, default none)
Ethernet 10M/100/1000M Ethernet
Interface USB interface support USB host*2

DC DC power supply 12V input
TF card Maximum support 32GB
RJ45 Ethernet port
Speaker 2W * 8Ω * 2
Micro earphone 3.5mm Stereo Headphone Output
USB Type-C Support upgrade and debug
Media player Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,Max. 3840x2160
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Text Format EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-Book format PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Image Format JPG,BMP,PNG

System management
APK installation APK installation
Root permission Original Android system,open root permissions, system customization
Remote control Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended.
OTA upgrade Support OTA remote upgrades
Others Gravity sensor support G-sensor
POE function   support POE (optional, default none)
OSD Language Multilingual OSD includes Chinese and English,etc
Accessories Adapter Power Adapter 12V/2A
User manual Standard
Warranty Card Standard







Ultra-wide Stretched LCD Bar display:



Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.







CHARACTERS:


1. HD LCD screen, support display models of 16:3, (Horizontal/Vertical) etc.


2. Multi-groups of on/off time schedule could be stetted remotely and control the display through Internet.


3. Interactive optical multi-points touch function, touch in two points simultaneously.


4. Compatible multimedia file formats: MPEG1/2/4, AVI, RM, WMV,DAT, JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc.


5. Scrolling texts in English and Chinese version are available, various display modes for titles (Fonts and colors of letters, background colors, the relative attributes of rolling directions in horizontal or vertical could be adjusted).


6. Support media contents combine by videos, pictures, flashes, marquee etc.


7. Support uploading files through WIFI and Ethernet network.


8. Intelligent system for arranging and playing programs, easy and fast operation.


9. Support displaying in dual screens, play different video files and audio contents in these two screens.







PACKAGING DETAILS
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.







Our Services:

1) Original guarantee; 2) Competitive prices;

3) Offer 12 months of warranty; 4) Stable supply at least 3-5years; 5)Any question will be reply in 24 hours
