Product Details:
|
| CPU&GPU: | RK3288 Quad-core Cortex-A17 | Product Description: | 28" Android All In One Advertising |
|---|---|---|---|
| Mobile Network: | Built In 4G LTE(optional, Default None) | POE Function: | Support |
| Resolution: | IPS 1920*360 | RAM: | 2GB/4GB |
| ROM: | 8GB/16GB/32GB | WiFi: | 802.11 B/g/n_2.4G (optional) |
| LAN: | 10M/100M/1000M Ethernet; | Operating System: | Android 6.0 |
| Gravity Sensor: | Support | ||
| High Light: | shelf edge lcd display,ultra wide lcd display |
||
digital signage LCD advertising player Shelf edge ultra wide screen display stretched LCD Bar Display from SUNCHIP
Stretched LCD Bar Display: AD-L2803-3288
Product Features:
1. Slim and light design.
2. Firm and durable case, made of metal plate.
3. VESA standard wall mount, able to hold kiosk tightly.
4. Able to split screen, able to be double sided, able to make vertical screen.
5. LED backlight, high brightness, clear image.
6. Suitable for super market, shopping mall, subway station, bus station, etc.
7. 19,1’’, 21.9’’, 23.1’’, 28’’, 28.8’’, 35’’, 36.6’’, 38’’ etc. size for option
& screen size can be customized
8. CPU (RK3128/RK3288/ A9)
9. Android OS for option
10. LCD bar screen with WIFI, BT, LAN, 4G LTE optional
PRODUCTS SPECIFICATIONS:
| System | CPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||||||||||
| RAM | 2GB/4GB (optional) | |||||||||||||
| Storage | 8GB/16GB/32GB(optional) | |||||||||||||
| Operation system | Android 6.0 | |||||||||||||
| Display | LCD panel | 28" | ||||||||||||
| Resolution | IPS 1920*360 | |||||||||||||
| Contrast ratio | 5000:1 | |||||||||||||
| Brightness | 500cd/m2 | |||||||||||||
| Aspect Ratio | 16:3 | |||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Buletooth | Bluetooth 4.0 | |||||||||||||
| Mobile Network | Built in 3G/4G LTE(optional, default none) | |||||||||||||
| Ethernet | 10M/100M/1000M Ethernet | |||||||||||||
| Interface | USB | USB host*2 | ||||||||||||
| Microphone output | 3.5M output | |||||||||||||
| USB Type-C | support USB upgrade&debug | |||||||||||||
| DC | DC power supply 12V input | |||||||||||||
| TF Card | Maximum support 32GB | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| Speaker | 2W * 8Ω * 2 | |||||||||||||
| Media Player | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,max 3840x2160 | ||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | |||||||||||||
| text | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||||
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||||
| Image format | JPG,BMP,PNG | |||||||||||||
| System Management | APK installation | APK installation | ||||||||||||
| Root permission | Original Android system,open root permissions, system customization | |||||||||||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended. | |||||||||||||
| OTA upgrade | Support OTA remote upgrades | |||||||||||||
| Other | Gravity sensor | support G-sensor | ||||||||||||
| POE function | support POE (optional, default none) | |||||||||||||
| OSD Language | Multilingual OSD includes Chinese and English,etc | |||||||||||||
| Accessories | Adapter | Power Adapter 12V/3A | ||||||||||||
| User manual | Standard | |||||||||||||
| Warranty Card | Standard | |||||||||||||
| Product size, Unit:mm | ||||||||
| Product size: | Color box size | Carton pcs/CTN | ||||||
| L | W | H | L | W | H | L | W | H |
| 734.3 | 33.3 | 172.3 |
|
|||||
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.
PRODUCT SCENARIOS
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
SUNCHIP mainly manufactures:

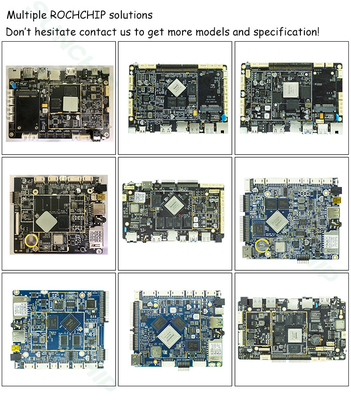

1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
