Product Details:
|
| CPU&GPU: | RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764 | OS: | Android 6.0 |
|---|---|---|---|
| WiFi: | 802.11 B/g/n_2.4G (optional) | BT: | Bluetooth 4.0 |
| Network: | 10M/100M/1000M Ethernet; | 4G LTE: | Built In 4G LTE(optional, Default None) |
| Resolution: | 1920*360 | LCD Screen: | 28'' |
| RAM: | 2GB/4GB (optional) | ROM: | 8GB/16GB/32GB(optional) |
| Contrast Ratio: | 500:1 | Brightness: | 500cd/m2 |
| Aspect Ratio: | 16:3 | POE Function: | Support POE (optional, Default None) |
| Gravity Sensor: | Support G-sensor | Remotely Controlling: | Support |
| OTA: | Support | Root Access: | Support |
| High Light: | shelf edge lcd display,ultra wide lcd display |
||

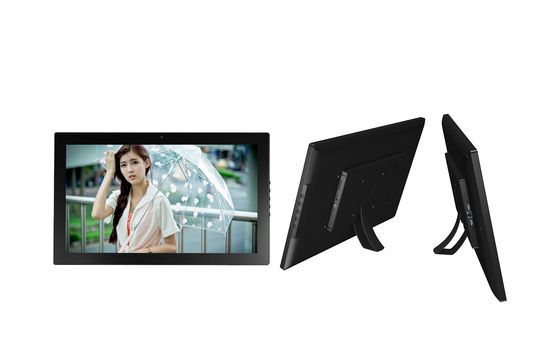

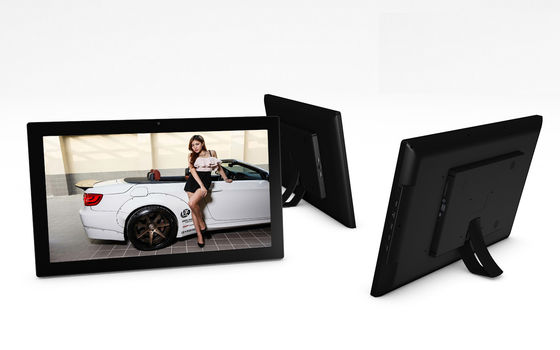

28 inch Ultra Wide Stretched Bar LCD HD Player, LCD Ad Advertising Display with release system
RK3288 Solution-Stretched LCD Display:
HIGHLIGHTS
A. High performance: The RK3288 uses the Quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
B. High stability: RK3288 Android integrated board, adds their own unique technology in the hardware & software to ensure the stability of the product to make sure the device 7*24 hours unattended.

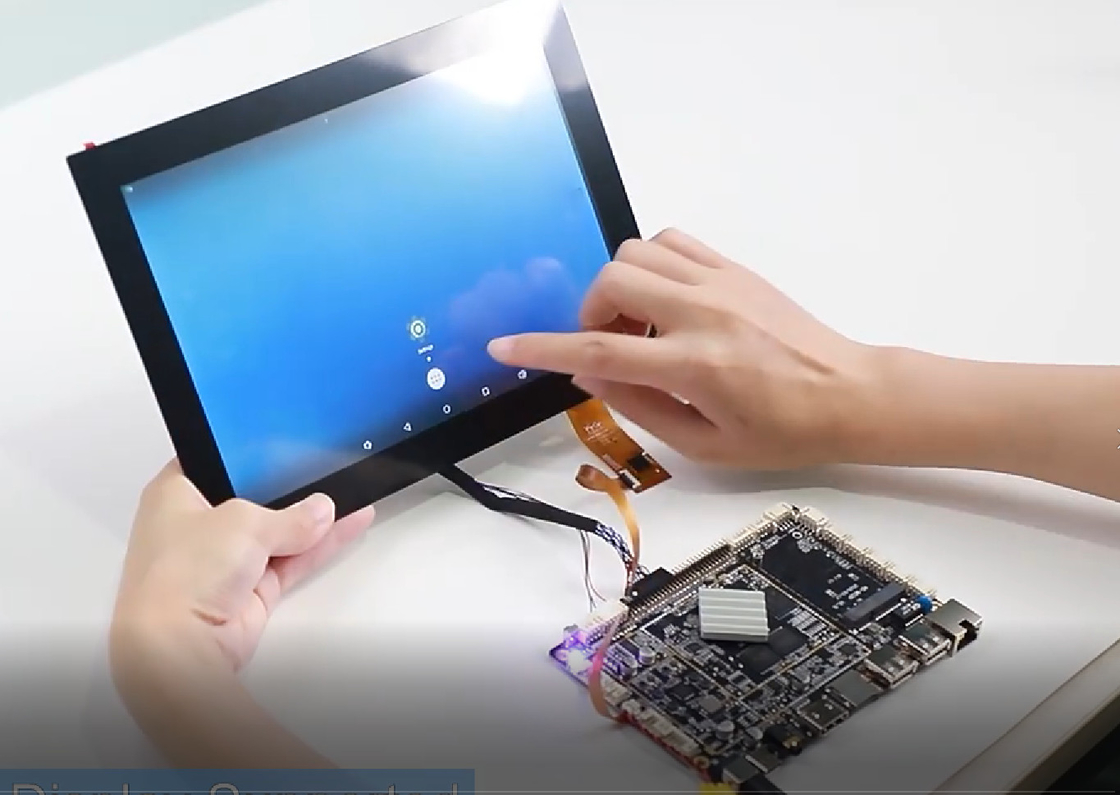

C. High integration: RK3288 Android integrated board integrates Ethernet, WIFI, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
SPECIFICATIONS
| System | CPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||||||||||
| RAM | 2GB/4GB (optional) | |||||||||||||
| Storage | 8GB/16GB/32GB(optional) | |||||||||||||
| Operation system | Android 6.0 | |||||||||||||
| Display | LCD panel | 28" | ||||||||||||
| Resolution | IPS 1920*360 | |||||||||||||
| Contrast ratio | 5000:1 | |||||||||||||
| Brightness | 500cd/m2 | |||||||||||||
| Aspect Ratio | 16:3 | |||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Buletooth | Bluetooth 4.0 | |||||||||||||
| Mobile Network | Built in 3G/4G LTE(optional, default none) | |||||||||||||
| Ethernet | 10M/100M/1000M Ethernet | |||||||||||||
| Interface | USB | USB host*2 | ||||||||||||
| Microphone output | 3.5M output | |||||||||||||
| USB Type-C | support USB upgrade&debug | |||||||||||||
| DC | DC power supply 12V input | |||||||||||||
| TF Card | Maximum support 32GB | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| Speaker | 2W * 8Ω * 2 | |||||||||||||
| Media Player | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,max 3840x2160 | ||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | |||||||||||||
| text | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||||
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||||
| Image format | JPG,BMP,PNG | |||||||||||||
| System Management | APK installation | APK installation | ||||||||||||
| Root permission | Original Android system,open root permissions, system customization | |||||||||||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended. | |||||||||||||
| OTA upgrade | Support OTA remote upgrades | |||||||||||||
| Other | Gravity sensor | support G-sensor | ||||||||||||
| POE function | support POE (optional, default none) | |||||||||||||
| OSD Language | Multilingual OSD includes Chinese and English,etc | |||||||||||||
| Accessories | Adapter | Power Adapter 12V/3A | ||||||||||||
| User manual | Standard | |||||||||||||
| Warranty Card | Standard | |||||||||||||
| Product size, Unit:mm | ||||||||
| Product size: | Color box size | Carton pcs/CTN | ||||||
| L | W | H | L | W | H | L | W | H |
| 734.3 | 33.3 | 172.3 |
|
|||||
PRODUCT SCENARIOS
PACKAGING DETAILS
OFFICE AND FACTORY
