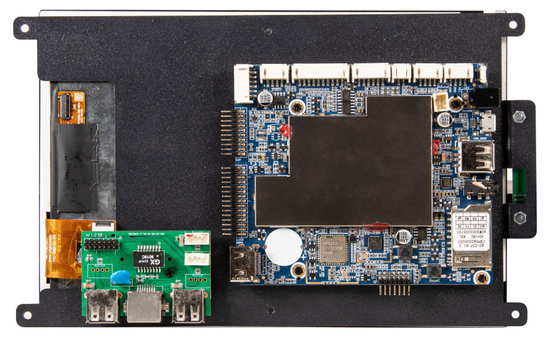

Wall mounted interactive touch screen digital signage kiosk SKD module For Bank Halls and any public places
Digital Signage Display features:
- Touchscreen & Non-Touchscreen
- Root permission ANDROID OS optional
- WIFI network
- LAN (RJ45) input for network connection (not for all models)
-4G connection via 4G LTE Module inserted or extra 4G small board (optional, not included)
This kind of shape is available with 32’’, 43’’, 49’’, 55’’ 65’’ etc. sizes.
SPECIFICATIONS:
| CPU |
Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency |
1.8GHz |
| RAM |
LPDDR3 2G/4G Optional |
| Built-in storage capacity |
EMMC 8GB/16G/32G/64G Optional |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP interface |
| Screen voltage |
Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|
|
The internet
|
With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
| Image rotation |
Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock |
Built-in (optional external) real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) |
| 3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.) |
| SD card, maximum support 32GB |
| Class D power amplifier: 3W*2 8 ohms, support microphone |
| HDMI 2.0 output |
| Audio |
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video |
Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture |
Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter |
Input: AC100-240V.50-60HZ, output: DC12V 3A |
| Operating system |
Android 8.0 and above |
| Basic software functions |
Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode |
Clock, alarm clock, calculator, recording |
| Language support |
multi-lingual |
| Recording |
Support MP3, WMA format recording |
| Tool |
Calendar |
| Alarm Clock |
| Calculator |
| note |
| Weather + clock |
| recording |
| Word processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook |
PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule |
calendar |
| Input |
Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Network |
Browser -ChromeLite |
| GOOGLE Market |
| Email |
| Gmail |
| Google talk |
| System Management |
APK installer |
| The original ecological Android system, open root permissions, can be customized product development |
| Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended |
| System setting |
| Google Maps |
| Global time |
| Support OTA remote upgrade |

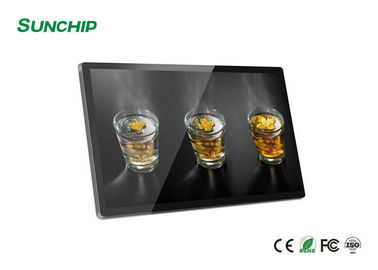

Android Interactive Digital Signage Display from SUNCHIP
Our Android Interactive Digital Signage are industrial / commercial models, specially designed and used in a retail environment, online digital signage screens, info touch kiosk, etc.
The Android System has some standard apps to be installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance, the digital signage app or kiosk web app, webstore, etc.
PRODUCT SCENARIOS
PACKAGING DETAILS for Interactive Digital Signage
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.
OFFICE AND FACTORY:
WELCOME TO CONTACT US!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

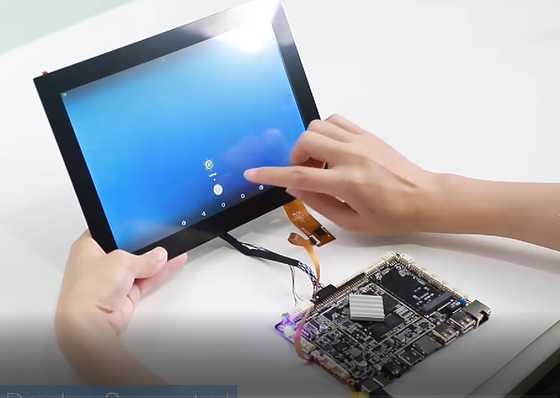

5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
