Product Details:
|
| Type: | Digital Signage Media Player | LCD Panel: | 23.8" IPS Screen |
|---|---|---|---|
| Resolution: | 1920*1080 | Network: | Ethernet / WiFi / ( 3G / 4G Optional) |
| CMS: | Support | Scenarios: | Retail Store / Shopping Mall /supermarket/bank/hobby |
| Split-screen Display: | Support | Display Interfaces: | LVDS, EDP |
| OS: | Support Android 6.0/7.1/8.1/9.0 | Color: | Black, Sliver, Customized |
| Touch Mode: | 10-point Capacitive Touch Screen (optional) | ||
| High Light: | lcd advertising display screen,high brightness digital signage |
||

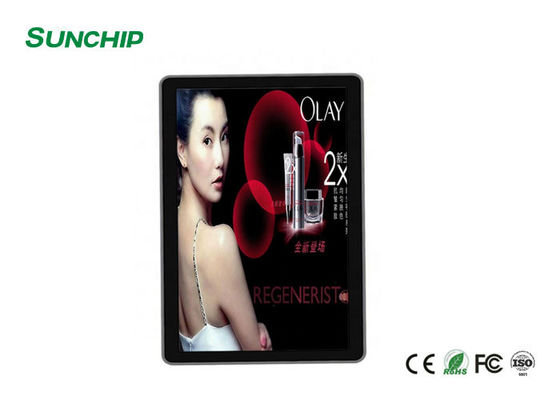

23.8 24 inch Cloud Based Digital Signage Solutions, SUNCHIP ADW LCD advertising Digital Signage touch screen display
Characteristics:
1. Infrared/Capacitive touch 10 points.
2. Support Android system. Support remote control.
3. Original BOE/LG IPS high brightness commercial panel.
4. Built-in touch program making software.
5. Aluminum alloy housing, rust-proof, anti-magnetic, anti-static. optional
6. Standard external interface and built-in extended interface.
Features & Benifits
Product Details:
Contents Management Software (CMS)
CMS is one of the most popular digital signage online management software which allows people quickly and easily to manage centrally controlled network of LCD advertising screens. And CMS can be hosted on On-Premise and Cloud Sever running 24/7 no maintenance hassle.
All of our digital signage products including wall mounted advertising displays, floor standing digital signage kiosks, digital signage media players., etc can be remotely online managed via CMS system. CMS supports remote control, screen layouts edit, playlist scheduling, multi-accounts management, versatile media format including image, video, audio, scrolling message, web page, streaming and live tv feeds., etc. We have numerous of clients from all over the world who are using our CMS system, And, now thousands of digital signage players /advertising displays / digital signage totems are working with our CMS software globally.
Resources Management
* Upload video, images,music to CMS and manage those files under resources.
Users and Accounts Management
* Authorize the access level to CMS via multi-users management;
* Create multiple accounts to allow different customers to login QCMS and manage separately and independently;
| System | CPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||||||||||
| RAM | 2GB/4GB (optional) | |||||||||||||
| Internal memory | 8GB/16GB/32GB(optional) | |||||||||||||
| Operation system | Android 5.1/6.0(Other versions can be customized) | |||||||||||||
| Touch screen | 10 point capacitive touch | |||||||||||||
| Display | LCD panel | 23.8" | ||||||||||||
| Resolution | IPS 1920*1080 | |||||||||||||
| Contrast ratio | 1000:1 | |||||||||||||
| Brightness | 250cd/m2 | |||||||||||||
| Aspect Ratio | 16:9 | |||||||||||||
| Network | WiFi | 802.11b/g/n (802.11a/b/g/n/ac optional) | ||||||||||||
| Buletooth | Buletooth 4.0 | |||||||||||||
| Wireless network | Compatible with external USB 3G/4G networks | |||||||||||||
| Ethernet | 10M/100M/1000M Ethernet | |||||||||||||
| Interface | USB interface | Support USB host*1 | ||||||||||||
| Headphone output | 3.5mm earphone output | |||||||||||||
| Type A USB_OTG*1 | Type A master USB_OTG*1 | |||||||||||||
| DC | DC power supply 12V input | |||||||||||||
| TF card | Maximum support 32GB | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| Speaker | 3W * 4Ω * 2 | |||||||||||||
FAQ:
Factory & Office
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
