Product Details:
|
| Product Name: | Android Interactive Digital Signage With Touch Optional | Application: | Indoor |
|---|---|---|---|
| Type: | TFT | LCD Panel: | 10.1'' |
| Resolution: | 1280*800 | Touch Screen: | 10-point Capacitive Touch Optional |
| HD: | Support HD Output | Contrast Ratio: | 800:1 |
| Brightness: | 300 Cd/m2 | Warranty: | 1-year |
| WIFI Module: | Included (2.4G Wifi / 5G Wifi Optional) | RJ45: | 10M/100M Ethernet |
| USB: | Support USB Host*2 | Video Format: | H.264,VP8,RV,WMV,AVS,H.263,MPEG4 Etc.,support Up To 1080P |
| Audio Format: | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Etc. | Image Format: | JPG、BMP、PNG |
| Speaker Output: | 8 Ohm 3W Speaker | Input Voltage: | DC Power 12V Input |
| High Light: | interactive display screens,interactive digital display |
||

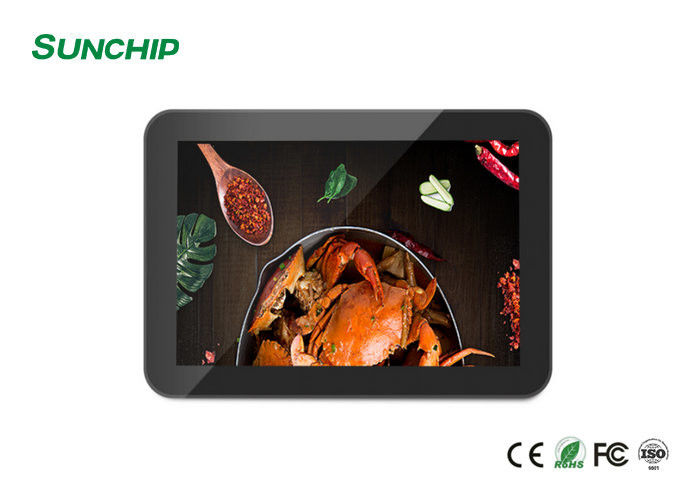

Sunchip interactive digital signage 10.1 inch LCD advertising media player with software
SUNCHIP ADW Android Interactive Digital Signage Display from SUNCHIP
Our Android Interactive Digital Signage are industrial / commercial models, specially designed and used in a retail environment, online digital signage screens, info touch kiosk, etc.
The Android System has some standard apps to be installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance, the digital signage app or kiosk web app, webstore, etc.
These Android Interactive Digital Signage Display
have the following features:
- Touchscreen & Non-Touchscreen
- Root permission ANDROID OS optional
- WIFI network
- LAN (RJ45) input for network connection (not for all models)
- 4G connection via 4G LTE Module inserted or extra 4G small board (optional, not included)
This kind of wall mounted shape / desk-model shape is available with 10.1’’’, 13.3’’, 15.6’’, 18.5’’, 21.5’’, 23.8’’, 27’’, 32’’, 43’’, 49’’, 55’’ 65’’ etc. sizes.
List of Features
Easy setup and plug and play!
Auto Start when plug in the power adapter
Rooted Android OS
Non-Touch
WIFI, Bluetooth, optional LAN and 4G
USAGE:
Plug in the power adapter, and immediately the Android display will turn on
(no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and let it play!
Specifications:
| Model No.: AD-10.1''-RK3188 | RK3188 Quad-core Android all-in-one advertising machine (10.1'' Android retail tablets with touch screen ) |
|||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3188 quad-core Cortex-A9 @1.6G GPU Mali -400 | ||||
| RAM | 1GB/2GB (optional) | |||||
| Internal Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 5.1 | |||||
| Touch screen | 10 point capacitive touch(optional) | |||||
| Display | Panel | 10.1'' | ||||
| Resolution | 1280*800 | |||||
| Contrast ratio | 800:1 | |||||
| Screen brightness | 300 cd/m2 | |||||
| Aspect Ratio | 16:10 | |||||
| Network | WiFi | 802.11 b/g/n_2.4G | ||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100M Ethernet | |||||
| Interface | ||||||
| Interface | USB interface*2 | Support USB host*2 | ||||
| Micro USB_OTG | Micro USB_OTG*1 | |||||
| (power jack) | DC power 12V input | |||||
| TF card | Maximum support 32GB | |||||
| HD | Support HD output | |||||
| RJ45 | Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Speaker output | Support 8 ohm 3W speaker dual channel output interface | |||||
| Buttons/Keys | Buttons/Keys | None, single key, three key (optional) | ||||
Product Scenarios:
PACKAGING DETAILS
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.
Pre-sale Service
Our professional team will serve on line for 24h for the customers.
If it is standard touch screen/ kiosk of our model, we will offer competitive price accordingly.
If clients have requirement of touch screen/ kiosk, our designing & sales team will provide professional advice on your respected project and will make every effort to make your project running.
After-sale Service
If any problems, you will get our reply within 24 hours. Solution will be offered instantly. We have professional technician to help solve any problem or direction during operating.
SHENZHEN SUNCHIP TECHNOLOGY CO., LTD is a leading company for integrating the whole industrial chain product, the main supplier for Digital Signage system & Embedded solution that focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS & Linux OS.
We have a professional 160+ employees’ team that including 100+ R&D engineers. We can provide one-stop service for Product definition, R&D of hardware & software, product schematic design, ID design, PCB layout, BOM scrubbing, High-quality order manufacturing, Good after-sales service and Diversified delivery modes for PCBA+Software, Customized software development, OEM&ODM products,
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
